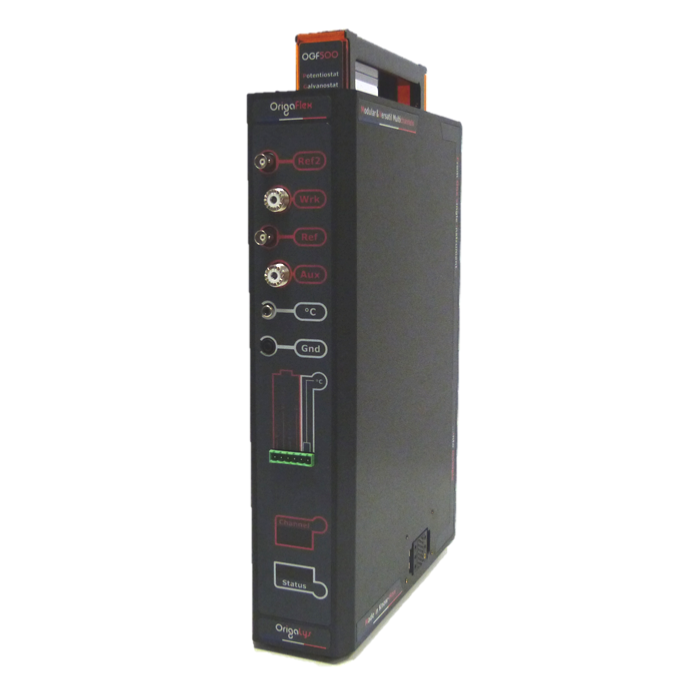

POTENTIOSTAT GALVANOSTAT - OGF500 - FOR ELECTROCHEMICAL MEASUREMENT
The OGF500 is a Potentiostat and Galvanostat measurement channel. Connected to a power supply module (OGFPWR) or a driving module (OGFDRV), the OGF500 is a trully independant channel of 500 mA.
- Temperature measurement
- Batteries holders connector
- GND connexion
One potentiostat for TWO possibilities
The OrigaFlex range is a multi-channel system, modular Mutli-potentiostats, compact and unique on the market. You can start your system with a single channel and then extend it without limit with an ETHERNET connection.
To operate, your single-channel potentiostat must be connected to a power supply or a "pilot" channel
With the OGFPWR, you can start with a single channel, with or without an impedance module
With an OGFDRV, you can expend your single-channel in a multi-channel, with or without an impedance module.
TWO software depending on your use
Depending on your configuration, drive your device with OrigaMaster 5 in USB or with OrigaViewer in ETHERNET. Individually, each channel is controlled by USB, via OrigaMaster 5. Simultaneously, each channel is controlled by ETHERNET, via OrigaViewer.
PC software OrigaMaster 5
The single-channel system is controlled by USB via the OrigaMaster 5 software.
PC software OrigaViewer
The multi-channel system is controlled by ETHERNET via the OrigaViewer software.
A flexible system
Single or multi-channel, it is always possible to split your system to obtain many configuration. For example:
A multi-channel system => 1 multi-channel system+ 1 single-channel system
A multi-channel system => 1 multi-channel system + 1 single-channel + 1 other single-channel
Split a multi-channel system in two
OGFPWR + OGF500 + EIS
OGFDRV + 4 x OGF500
A flexible system without limit
It is always possible to split but also to expend a single or multi-channel system. With an Ethernet switch, by connecting "pilote channel" OGFDRV, you can have a multi-channel system, multi-potentiostats without limit.
Extend a multi-channel system
The multi-channel system is drived by ETHERNET via OrigaViewer.
Example of multi-channel
OGFDRV + 5 x OGF500 + 1 x OGFEIS
OGFDRV + 4 x OGF01A + 1 x OGFEIS
Compatible and optional modules
Impedance: 10 µHz - 5 MHz
OrigaTrod: Rotating Disk Electrode
OrigaBox: Speed controller
from 100 to 10,000 RPM
Low current potentiostat
±1 pA, ±10 pA, ±100 pA, ±1 nA and ±10 nA.
Best current resolution:
Coin cells holder
Temperature sensors included
Thickness: 3,2 mm maximum
Diameter: 20 mm maximum
Other complementary accessories
Need more informations ? Contact us at +33 9 54 17 56 03 or fill out our form
