OrigaFlex - OGFDRV and Dummy Cell

(Código: X13OGL004CIAL)

OrigaFlex - Drive Unit and Built-in Dummy Cell

Mandatory unit to drive up to 10 channels under 20A limitation
0g

 DRIVE UNIT - OGFDRV


Description
Connectivity
Technical specification
Brochures
achat potentiostat simple

OGFDRV is a drive unit,equivalent of the chassis of the system. It provides current to all the connected modules : potentiostats/galvanostats and/or impedance modules.

Up to 10 potentiostats if the total sum in ampere doesn't exceed 20 A. It can support as much impedance module OGFEIS as potentiostats.

Then you can obtain the multi-channel potentiostat that you need. Made by you, for you

5 years warranty !

ONE "Chassis" module

The OrigaFlex is a multi-channel system, modular Mutli-potentiostats, compact and unique on the market. You can start your system with one module (Single-channel) connected to the drive unit and controlled by ETHERNET or USB. Three powers are available and combinable:

  ±500 mA with OGF500

±1 A with OGF01A

  ±5 A with the OGF05A

  ±10 A with the OGF10A

Supply and

Drive

Potentiostats and Galvanostat

OGF500 or OGF01A or OGF05A or OGF10A

OGFDRV

OGF500

OGF01A

OGF05A

OGF10A

To operate, your multi-channel potentiostat must be connected to a power supply or a "pilot" channel.

One Module for unlimited configurations

The pilot module OGFDRV control all connected channels. The powers are combinable thus offering you very varied combinations. For example:

OGFDRV + OGF500

Ou OGFDRV + 3 x OGF01A + OGF500 + OGF05A

Or OGFDRV + 4 x OGF05A

Or OGFDRV + 6 x OGF500


No limit with the OGF10A (thanks to its own Power Supply)

OGFDRV + 10 x OGF10A

Only one module OGFDRV

Example 1: 4 x OGF500

Example 2: 5 x OGF500 + 1 x OGFEIS

All channels are controlled by ETHERNET via the only OGFDRV.

Two modules OGFDRV

Example 3:

OGFDRV n°1 + 5 x OGF01A + 1 x OGFEIS

OGFDRV n°2 + 4 x OGF500 + 1 x OGFEIS

All channels are controlled by ETHERNET via

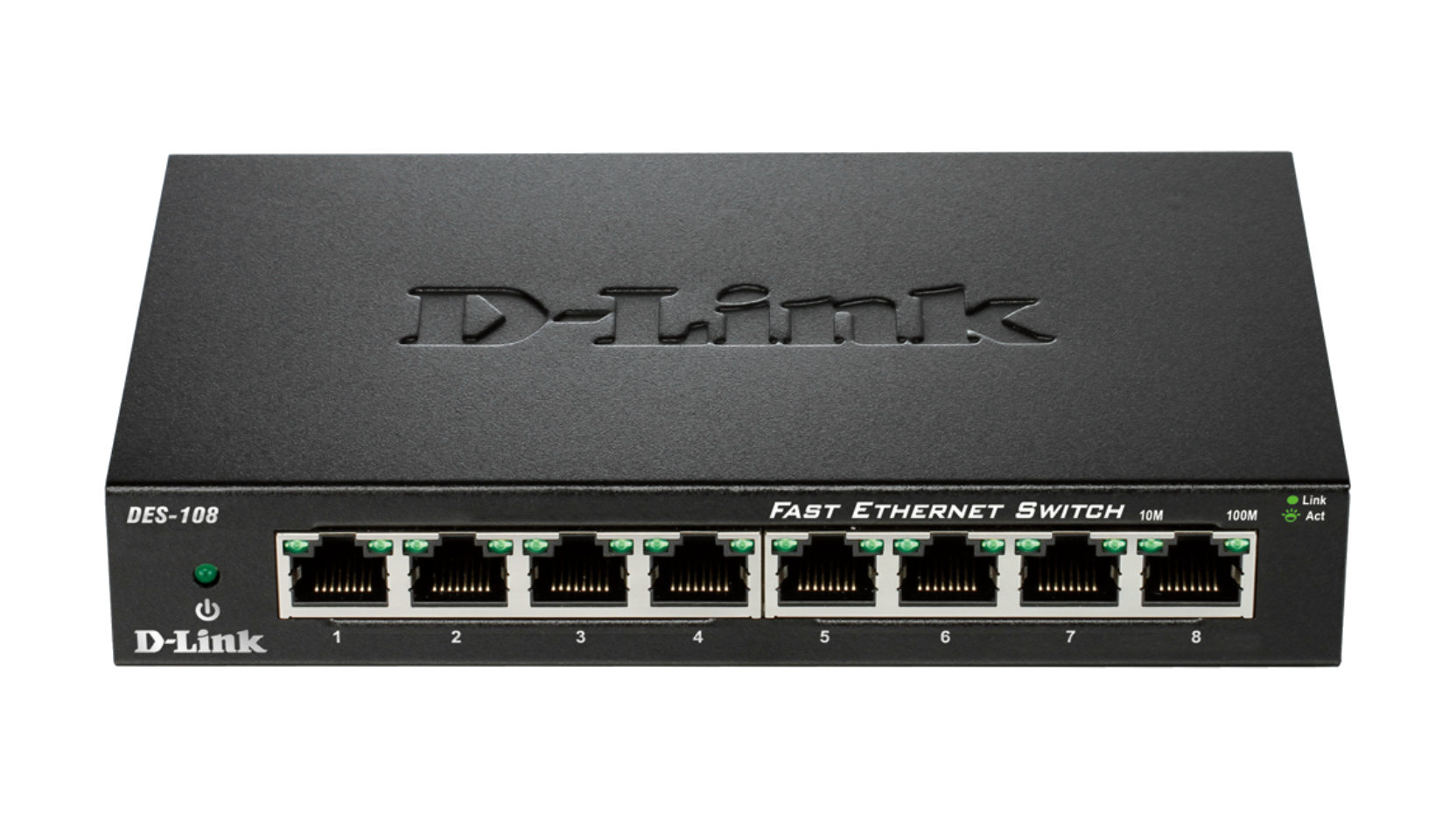

a Swtich ETHERNET

connected to the 2 modules OGFDRV

and to the PC.

With or Without impedance module

OGFDRV allows to supply and drive up to 10 channels with a total amps equal or under 20A. You can connect as much impedance module as channel.

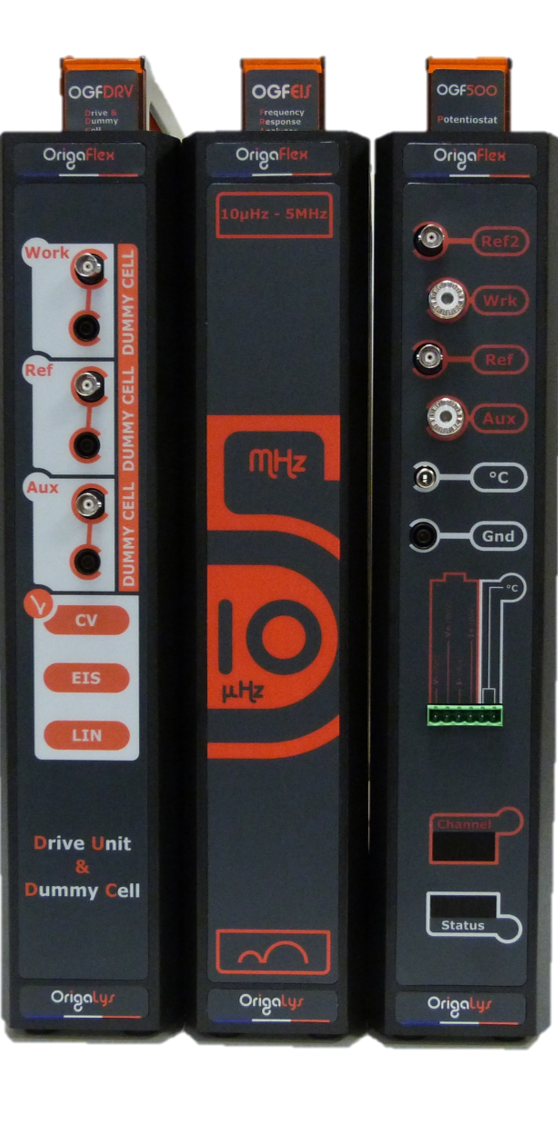

incorrect connexion

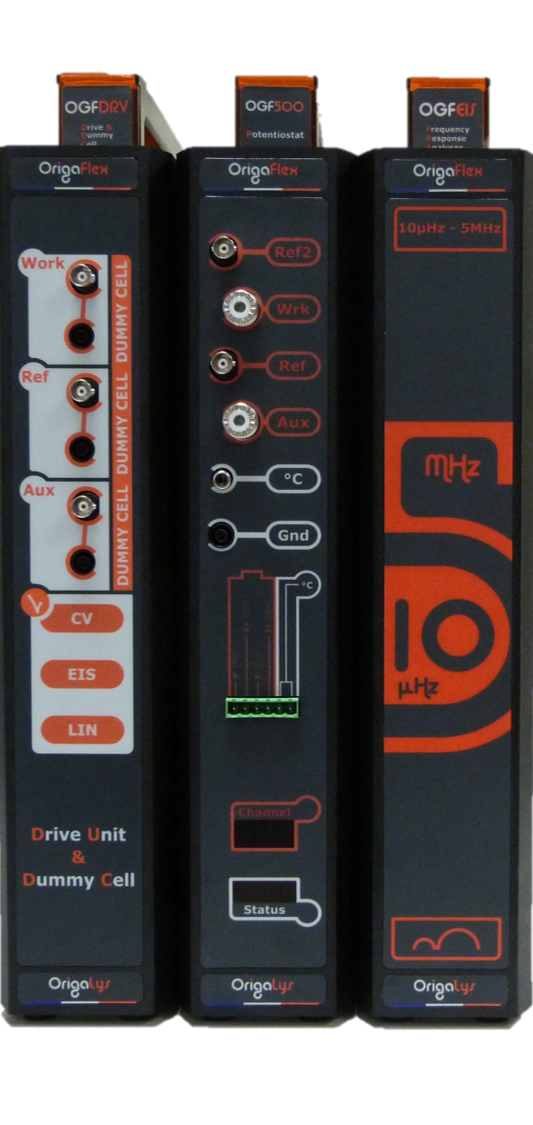

correct connexion

Impedance module OGFEIS must always be connected after the channel with which you perform the impedance measurements.

ONE dedicated software

The OGFDRV supply up to 10 channels if the sum of amps does not exced 20A. The driving module manages the connexion with the PC. This is made in ETHERNET from rear panel of the module.

PC Software OrigaViewer

The multichannel system is drived in ETHERNET via the software OrigaViewer.

Main specifications

Power

 Weight

 Dimensions

Length

Width

Heigth

OrigaFlex - OGFDRV

100-240 Vac - 50-60 Hz - 1 KVA

4.55 kg

in cm

28.5

8.3

45

Brochures

OGFDRV

OGF500

OGF01A

OGF05A

OGF10A

ORIGAFLEX

CATALOG

PRODUCT

CATALOG

ELECTRODES

CATALOG


Need more informations ? Contact us at  +33 9 54 17 56 03  or fill out our form
