OrigaFlex Impedance channel Z 10µHz - 5MHz
0g

IMPEDANCE MODULE- OGFEIS - FOR ELECTROCHEMICAL MEASUREMENT


Description
OrigaFLEX concept
technical specifications
Brochures
achat potentiostat simple

OGFEIS connected to an OGF500 Pack

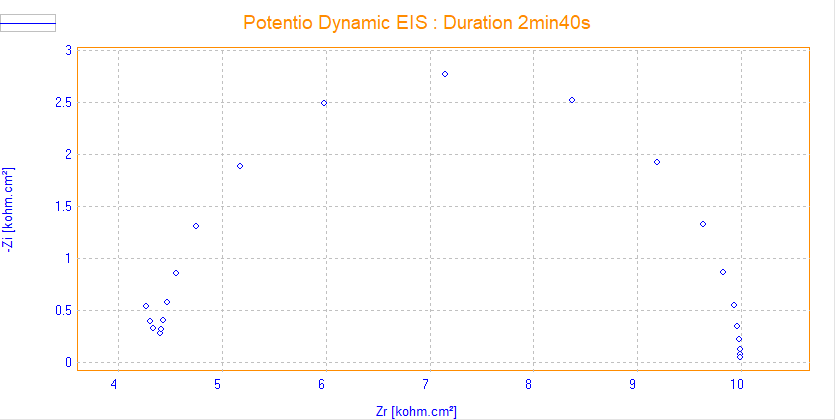

Nyquist Z Curve

The OGFEIS is an impedance module, which once connected to a Potentiostat Galvanostat, allows EIS measurement (Electrochemical Impedance Sprectroscopy).

Availables impedance methodes:

  • Potentiostatic Dynamic EIS
  • Galvanostatic Dynamic EIS
  • Potentiostatic Fixed Frequency EIS (Capacitance): Mott-Schottky


The OGFEIS can be connected to this potentiostat:

OGF500

OGF01A

OGF05A

OGF10A

5 years warranty !

ONE potentiostat for TWO possibilities

The OrigaFlex range is a multi-channel system, modular Mutli-potentiostats, compact and unique on the market. You can start your system with a single channel and then expend it without limit thank to the Ethernet connexion.

Single-channel

Multi-channel

To operate, your single-channel potentiostat must be connected to a power supply or a "pilot" channel.

or

Thanks to the OGFPWR, you can start with a single-channel, with or without an impedance module

Thanks to the OGFDRV, you expend your single-channel in a multi-channel, with or without impedance module.

TWO software depending on your utilisation

According to your configuration, control your device with OrigaMaster 5 in USB or with OrigaViewer in ETHERNET. Individually, each channel is controlled by USB, via OrigaMaster 5. Simultaneously, each channel is controlled via ETHERNET, via OrigaViewer.

PC Software OrigaMaster 5

The single channel system is controlled with an USB connexion via OrigaMaster 5 software.

PC Software OrigaViewer

The multi-channel system is controlled with an ETHERNET connexion via OrigaViewer software.

A flexible System

It is always possible to share your existing system to obtain several configurations. For example :

A multi-channel system => 1 multi-channel system + 1 single-channel system

or

A multi-channel system => 1 multi-channel system + 1 single-channel + 1 other single-channel


Split a multi-channel system

A single-channel

OGFPWR + OGF01A + EIS

AND

A multi-channel

OGFDRV + 4 x OGF01A

A flexible system without limit

It always possible to split or expend a single or a multi-channel system. Thank to an Ethernet switch, by always connecting pilot channel OGFDRV, you obtain a multi-channel potentiostats without limit.

Expend a multi-channel system

A multi-channel system is driving in ETHERNET via OrigaViewer software.

Multi-channel example

OGFDRV + 5 x OGF500 + 1 x OGFEIS

And

OGFDRV + 4 x OGF01A + 1 x OGFEIS

Main specifications

 Frequency range

Frequency resolution

Input range

Signal types

 Potential: AC Amplitude

Current: AC Amplitude

 Data

Analysis

Software

OrigaFlex - OGFEIS

10 µHz to 5 MHz

5 ppm

 ±15 V

 Sine with delay and Average on 1 to 10 determinations

6 µV to 7.5 V maximum

100 % of range I. Best resolution: 6 ppm

 Nyquist, Bode, Admittance, Mott-Schottky

 Fit and simulation, Find circle, Element subtraction, Export Data

OrigaMaster and OrigaViewer

Brochures

ORIGAFLEX

CATALOG

PRODUCT

CATALOG

ELECTRODES

CATALOG
